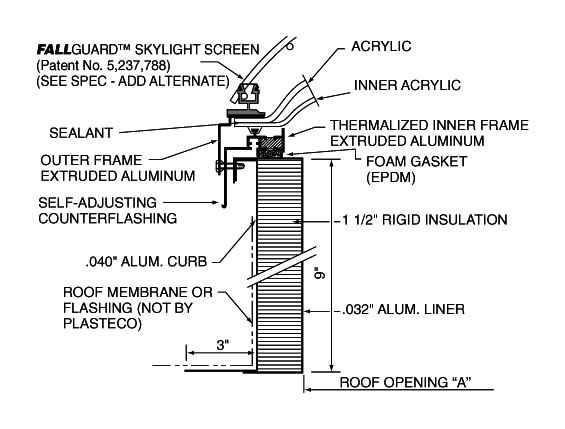

Click here for enlarged detail
Specifications: Thermalized integral curb mounting skylights shall be Model 297 as manufactured by Plasteco, Inc. It shall consist of a Model 197 skylight mounted on a 9" insulated double wall aluminum curb. The insulation shall be 1-1/2" thick rigid foam. Thermalized inner frame shall have a continuous foam gasket and self-adjusting counterflashing to reduce infiltration (or exfiltration) of air and wind blown water from entering the interior between the inner frame and curb. Outer dome shall be (clear, white translucent or bronze) acrylic. Inner dome shall be (clear or white translucent) acrylic.
Add Alternate: Fall protection as required by OSHA Regulation 1926.501 "Duty to have fall protection" shall be provided by FallGuard Skylight Screens. These shall be shipped separately and installed prior to the installation of the skylight.
Add Alternate: Plasteco Hail Stone Screens meet the Factory Mutual recommendations for hail screens. The hail screens must resist impact of a 2" diameter hail stone having an impact energy of 22 ft. lbs.
Specifications: Hail
stone screen shall consist of a 1" by 1" x .062 galvanized
welded wire mesh overlaid on the FallGuard Skylight Screen. |
