Specifications: Pyramid skylights shall be factory-assembled Model 120 (or 121) pyramids as manufactured by Plasteco, Inc. Each unit shall have an inner frame (.072") and an outer frame (.050") of 6063-T5 extruded aluminum. Inner frame shall have a 6 degree sloping condensation gutter with weepage, a pyramid elevating leg with continuous EPDM gasket, and self-adjusting counter flashing. Pyramid shall be formed of (clear, white translucent or bronze) acrylic. (For Model 121, add: Inner pyramid shall be formed of (clear, white translucent or bronze) acrylic.)
Add Alternate: Provide fall protection as required by OSHA regulation 1926.501 "Duty to Have Fall Protection".

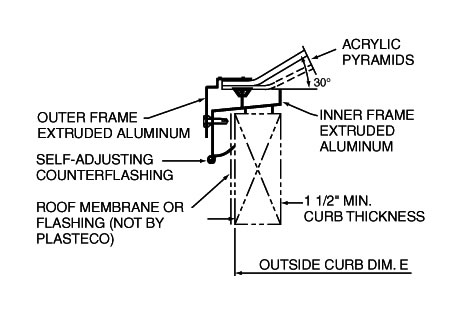

Click here for enlarged detail
|
|
