Model TSSR - Trapezoidal Stand Steam


		Model TSSR


		Model TSSR FallGuard® Skylight Screens PREVENT falls through trapezoidal standing seam skylights. These skylights are similar to the regular corrugated fiberglass skylights in that they are at the same level as the roof and have the same profile. They can be easily overlooked when a person is working or walking on the roof. FallGuard® Skylight Screens are easy to install and allow for a proactive rather than reactive solution to a safety hazard. They like other FallGuard® Skylight Screen models will prove to be more than cost effective considering the alternative of a fall through a skylight.

Installation Instructions:

Do not place body weight on corrugated fiberglass at any time during installation. Corrugated fiberglass will not support body weight. Wear gloves when handling screen.

With the opening in the notches in the TSSR FallGuard® rail facing upward (toward the ridge), attach the flange of the TSSR rail to the outside of the standing seam (opposite the skylight) with the furnished stainless steel hex washer head self-drilling screws.
Slip the FallGuard® Skylight Screen into position onto the attached rails.

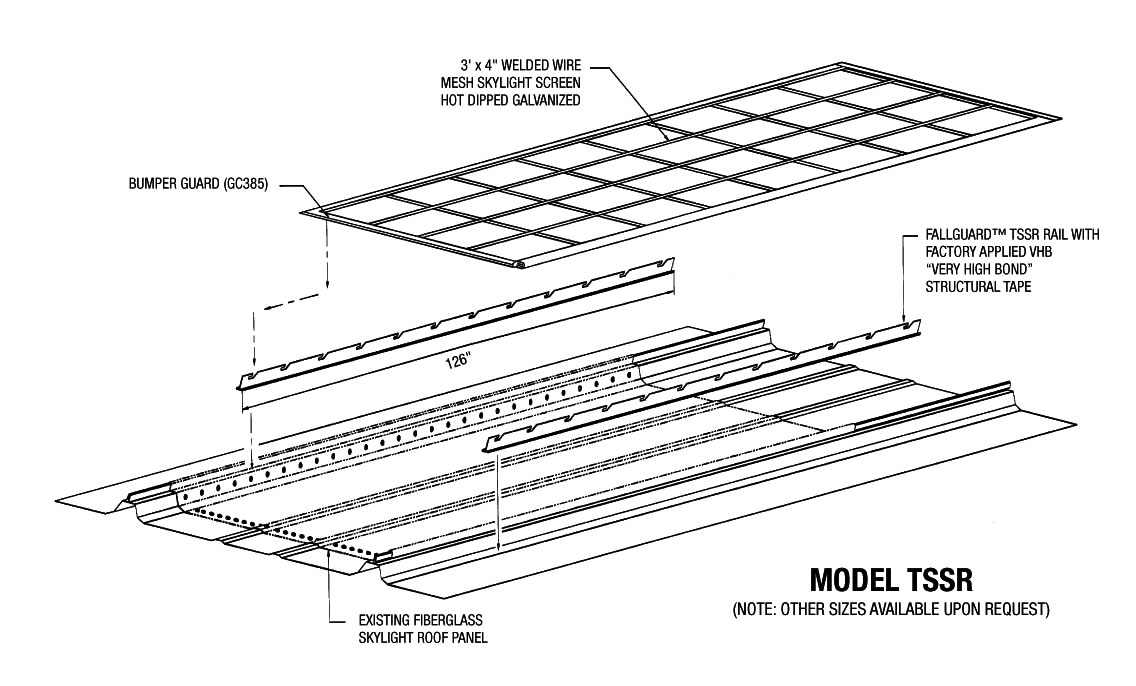

Click here for enlarged detail of Model TSSR

Specifications:

Skylight Screens shall be Model TSSR 2410 (or Model TSSR 1810) as manufactured by Plasteco, Inc., P.O. Box 24158, Houston, Texas 77229 (1-800-231-6117) (Fax 1-877-231-6117). The skylight screen shall be 3” x 4” welded wire mesh having a minimum transverse diameter of 0.195”. The FallGuard® Skylight Screen shall be hot dipped galvanized after welding to ASTM A123 specifications. The protruding ends of the FallGuard® Skylight Screen shall be covered by a plastic extrusion.


	*Download Model TSSR DATA SHEET in .pdf format* *(Requires Adobe Acrobat Reader)*
